Concrete, metal and asphalt on flexible boards with original imi-surface.

imi-flex-biegsamer-beton

Unusual shapes and coatings made of materials for which it is not self-evident. The flexible HPL-boards (laminate) are easy to process and weigh only approx. 2 kg per m². The robust surface structure makes the Flex board highly resilient.

The product is ecologically harmless and currently available in many surface options.

The carrier board is a 0.9 mm HPL-board. The rear is HPL – raw.

Product description and benefits

  • Flexible imi-surfaces on HPL. For all kind of moldings, our imi-flex is available. Extremely light - without changing the authentic surface. Also available as edge material with the original imi structure as dyed through CPL.
  • The Flex composite board is available in many designs. Take a look at "Available surfaces" section, please.​
  • The carrier board is a 0.9 mm HPL-board.
  • The rear is HPL - raw.
  • The top is coated with a flexible, mineral imi-coating with a thickness of 1-7 mm.
  • The mineral imi-coating is classified according to EN 15824:2009 as non-flammable A2-s1, d0.
  • The surfaces are painted with a matte varnish.
  • For a higher strain, e.g. on horizontal areas, we recommend an additional matte protective coat of varnish.
  • For highly stressed areas, such as worktops, counter and table areas, the "Plus"-version is recommended.
  • Imprints such as scripts or logos and symbols are possible as well.
  • It can be easily processed with conventional carbide-equipped carpentry (wood processing) tools. When screwing on, ensure that pre-drilling is done.
  • Usage: furniture, inner doors, furniture fronts, shop and trade fair constructions, interior design, e.g. wall panelling, shape bonds, etc. Suitable for internal radiuses of about 5 cm, outside radiuses of about 10 cm. Flex is lightweight, a m² weighs only 2 kg.

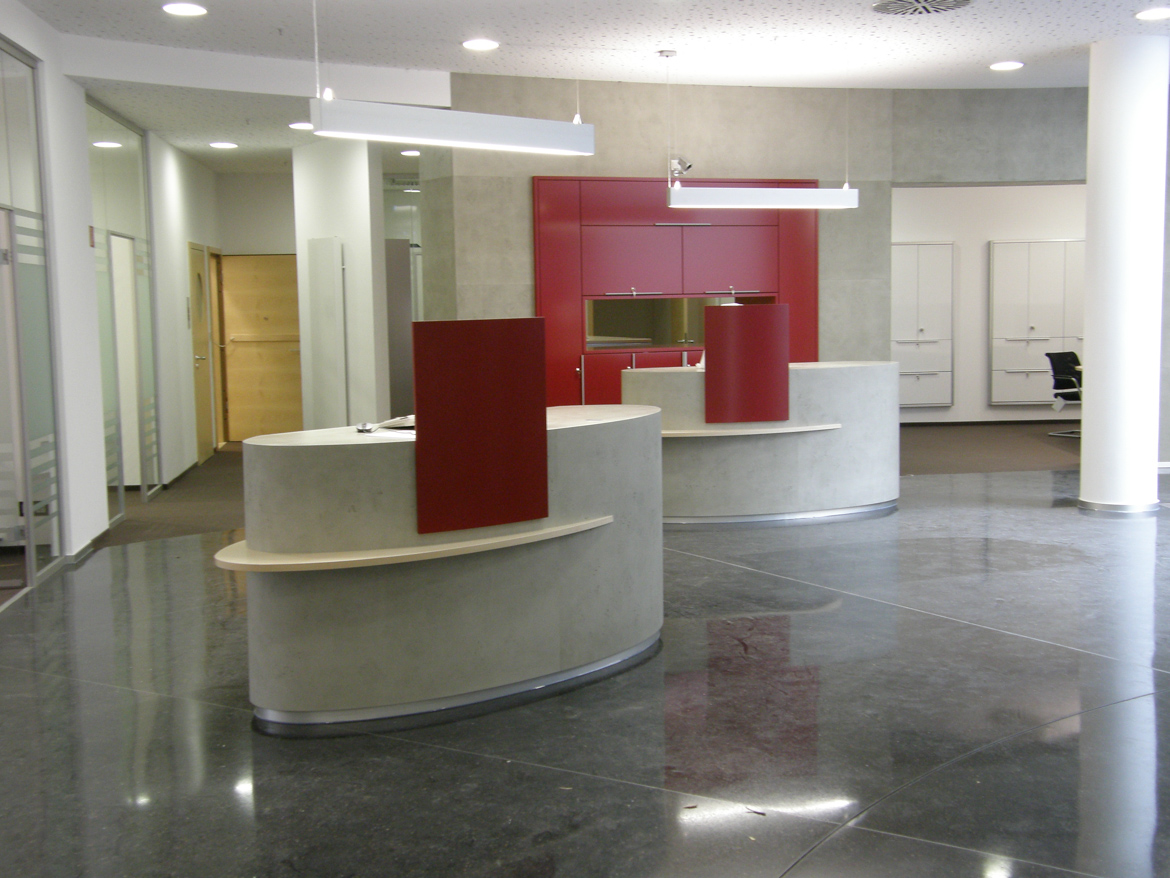

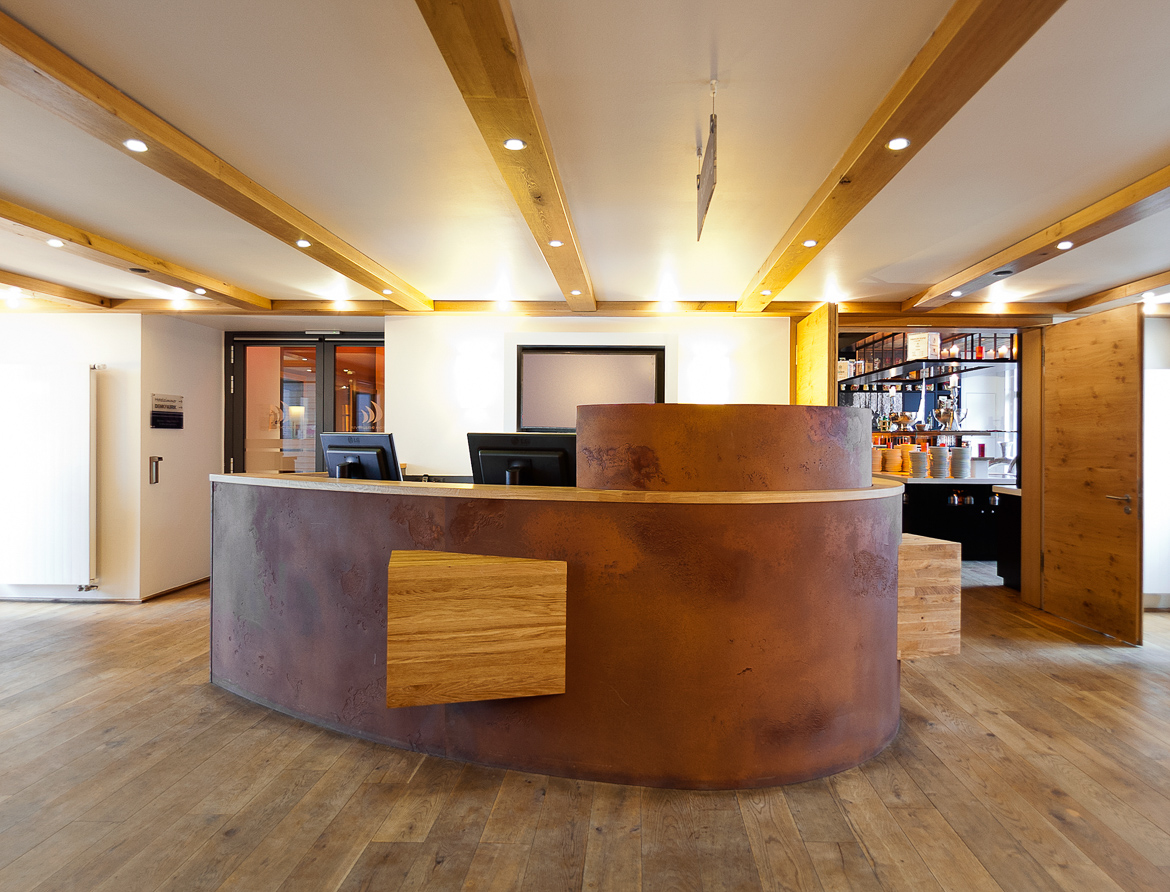

Application examples gallery

Formats

Standard format
3.030 x 1.280 mm

Boards

Decor-no. Description Article-No. Thickness in mm Weight per sqm Dimensions in mm
120 imi-beton smooth formwork grey Flex
FG 1002
1-1.5
ca. 2.6 kg
3.030 x 1.280
121 imi-beton smooth formwork anthracite Flex
FG 2002
1-1.5
ca. 2.6 kg
3.030 x 1.280
122 imi-beton timber formwork Flex
FBR 1002
1-3
ca. 2.8 kg
3.030 x 1.280
223 imi-beton vintage light Flex
FVH 1002
1-1.5
ca. 2.6 kg
3.030 x 1.280
224 imi-beton vintage standard Flex
FVG 1002
1-1.5
ca. 2.6 kg
3.030 x 1.280
226 imi-beton vintage anthracite Flex
FVG 2002
1-1.5
ca. 2.6 kg
3.030 x 1.280
329 imi-rost smooth Flex
FRG 1002
1-2
ca. 2.9 kg
3.030 x 1.280
330 imi-rost deep Flex
FRT 1002
1-3
ca. 2.9 kg
3.030 x 1.280
331 imi-rost diamond Flex
FRR 1002
1-3
ca. 2.9 kg
3.030 x 1.280
341 imi-precious rust Flex
FER 1002
1-3
ca. 3 kg
3.030 x 1.280
120 imi-beton smooth formwork grey Flex Plus
PF 1002
2
ca. 3 kg
3.030 x 1.280
121 imi-beton smooth formwork anthracite Flex Plus
PF 2002
2
ca. 3 kg
3.030 x 1.280
621 imi-asphalt Flex
FA 1002
1-3
ca. 3 kg
3.030 x 1.280
742 imi-metal steel Flex
FST 1002
2
ca. 2.9 kg
3.030 x 1.280
743 imi-metal steel diamond Flex
FSTR 1002
1-3
ca. 2.9 kg
3.030 x 1.280
744 imi-metal copper Flex
FKU 1002
2
ca. 2.9 kg
3.030 x 1.280
745 imi-metal verdigris Flex
FKUG 1002
2
ca. 2.9 kg
3.030 x 1.280
746 imi-metal copper diamond Flex
FKUR 1002
1-3
ca. 2.9 kg
3.030 x 1.280
747 imi-metal verdigris diamond Flex
FKURG 1002
1-3
ca. 2.9 kg
3.030 x 1.280
748 imi-metal brass Flex
FME 1002
2
ca. 2.9 kg
3.030 x 1.280
